BEYMA FD2XA CROSSOVER PASSIVE FILTERS (P/N: 1FFD2XA)

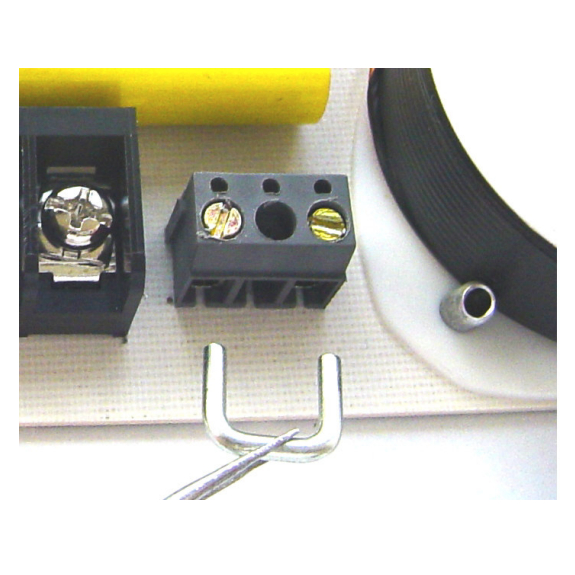

These 2 way passive filters have been specifically designed to be used with the XA and XC Beyma coaxials, in order to achieve an optimum performance of these drivers. Please, see attached filter selection guide to find the suitable filter model for each coaxial model. These filters offer the possibility of an additional attenuation of the high frequency unit. Anyway, this attenuation is only optional, optimum performance of the coaxial is achieved without using it. However, if you wish to use it you can activate it by simply removing the aluminum bridge labeled as «AT» on the back surface of the board (please see attached picture).

FEATURES:

• 2 way filters • 12 dB/oct. attenuation slope

• Additional high frequency attenuation

• High power components

• Specially designed for the use with Beyma coaxials

TECHNICAL SPECS:

Type: 2 way

Crossover frequency: 1.8/2/2.2 kHz

Impedance LF: 8 ohm

Impedance HF: 16 ohm

Power capacity: 600 w RMS

Low/High frequency impedance: 8/16 ohms

Attenuation slope: 12 dB/ oct.

H.F. attenuation: 0, -1.5 dB

*USE WITH 15XA38ND & 12XA30ND
