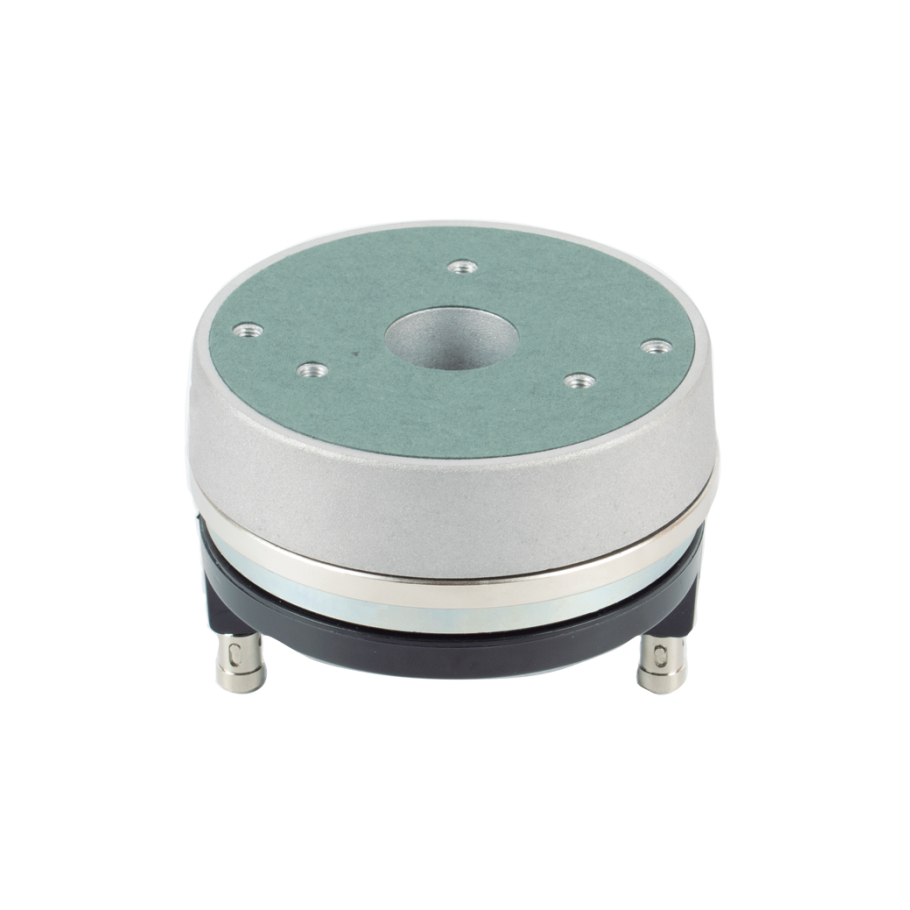

BEYMA CP385ND COMPRESSION DRIVER 8 OHMS (P/N: 1CP385N8)

FEATURES:

● 1” (25,4 mm) high frequency compression driver

● Sensitivity 109 dB (1W / 1m)

● Power handling: 70 WAES above 1,5 kHz

● Extended frequency range: 0,8 – 20 kHz

● Polyester diaphragm

● 1,75” aluminum voice coil

● Neodymium magnet

● Low harmonic distortion

TECHNICAL SPECS:

Nominal diameter: 25,4 mm 1 in

Rated impedance: 8 Ω

Minimum impedance: 5,6 Ω

D.C resistance: 4,7 Ω

Power capacity 1: 10 W (AES) above 1,5 kHz

Program power 2: 140 W above 1,5 kHz

Sensitivity: 109 dB 1W / 1m @ Zn coupled to TD-194

Frequency range: 0,8 – 20 kHz

Recommended crossover: 1,2 kHz or higher (12 dB/oct min.)

Voice coil diameter: 44,4 mm 1.75 in

Magnetic assembly weight: 1,1 kg 2,4 lb

Flux density: 2,2 T

BI factor: 7,5 N/A
