BEYMA TD194 HORN (P/N: 1TD194)

FEATURES:

*Designed to be used with 1″ compression drivers

*Coverage angles of 90degree in the horizontal plane and 40degree in the vertical plane.

*Precise directivity control in the pass band

*Square and compact design, providing versatile mounting options

*Cast aluminum construction

TECHNICAL SPECS:

*Throat diameter: 25,4 mm 1 in

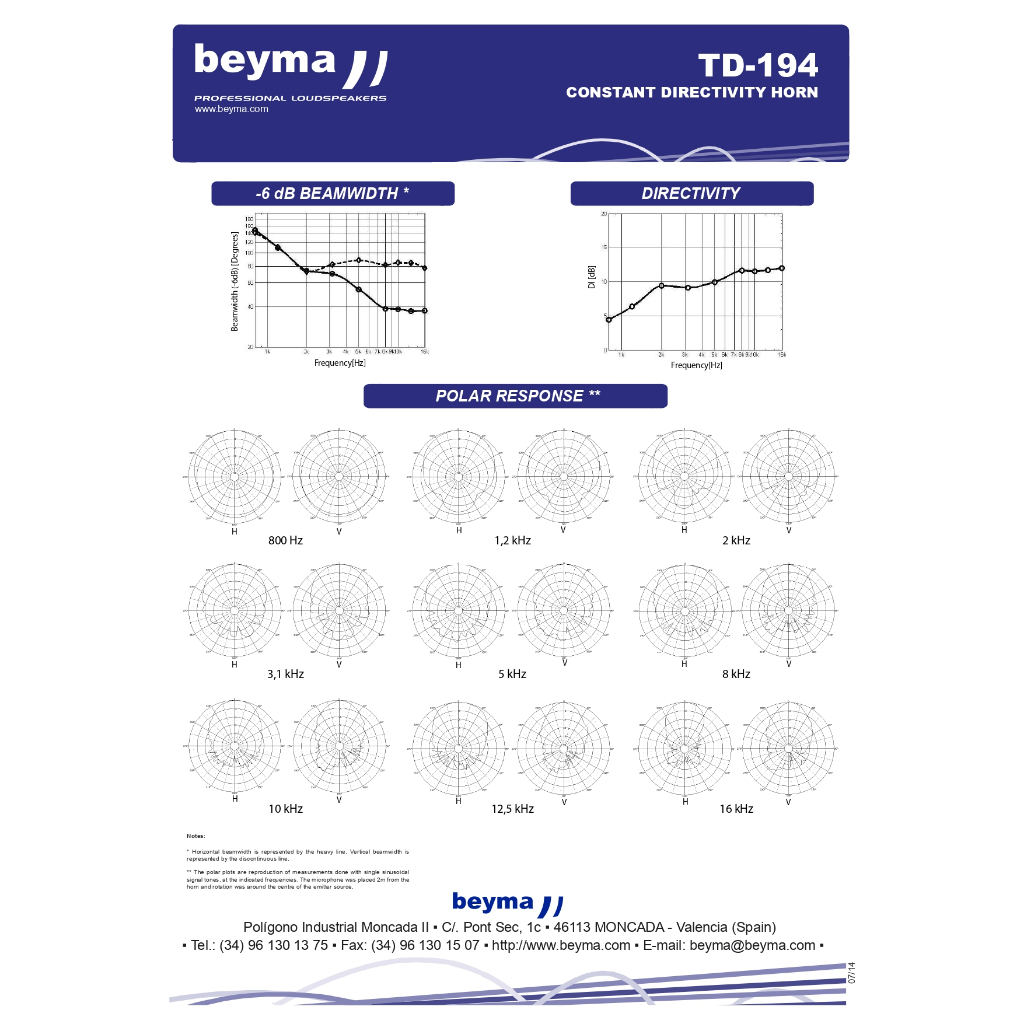

*Horizontal beamwidth: 90 degree (-2 degree, -18 degree) (-6 dB, 2 – 16 kHz)

*Vertical beamwidth: 40 degree (+34 degree, -3 degree) (-6 dB, 2 – 16 kHz)

*Directivity factor (Q): 11,2 (average 0,8 – 16 kHz)

*Directivity factor (Dl): 10,2 dB (+2 dB, -6,4 dB)

*Cut-off frequency: 1200 Hz

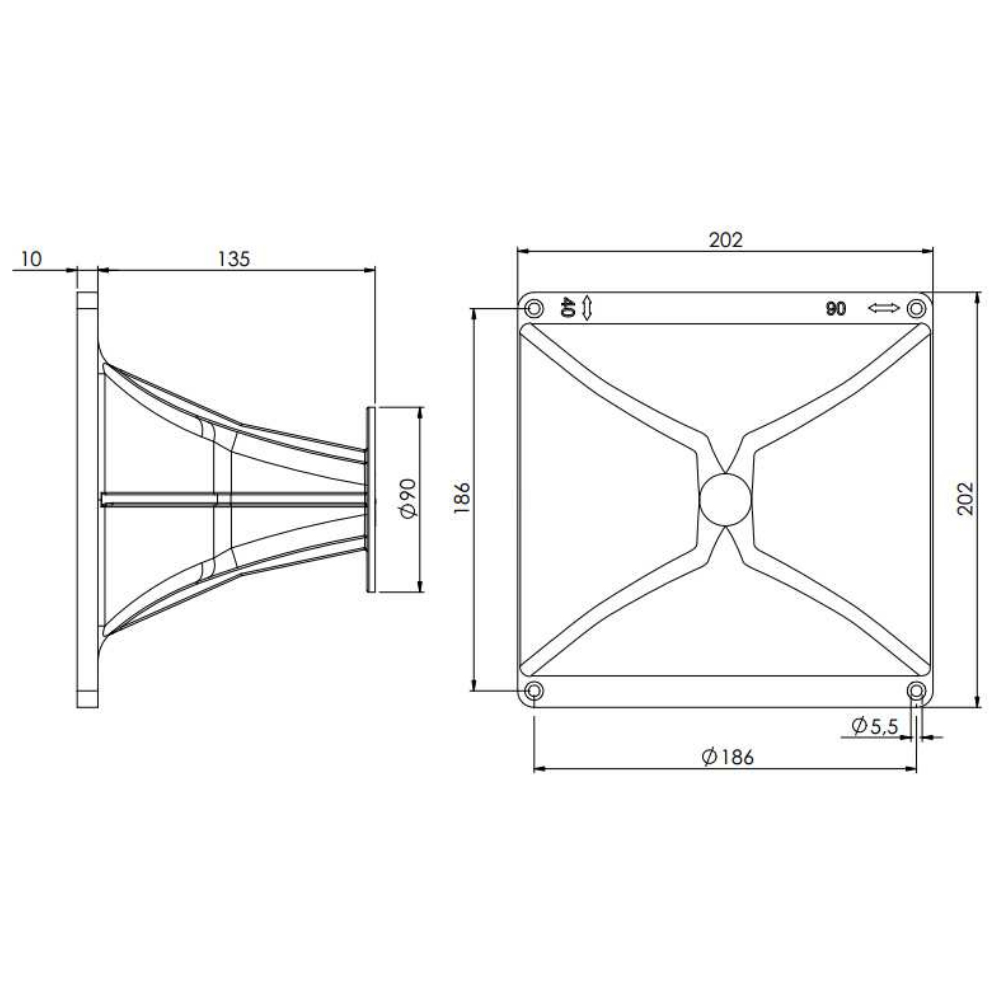

*Dimensions (W x H x D): 202 x 202 x 145 mm // 7,95 x 7,95 x 5,71 in

*Cut-out dimensions (W x H): 177 x 177 mm // 6,97 x 6,97 in

*Material: Cast Aluminum
