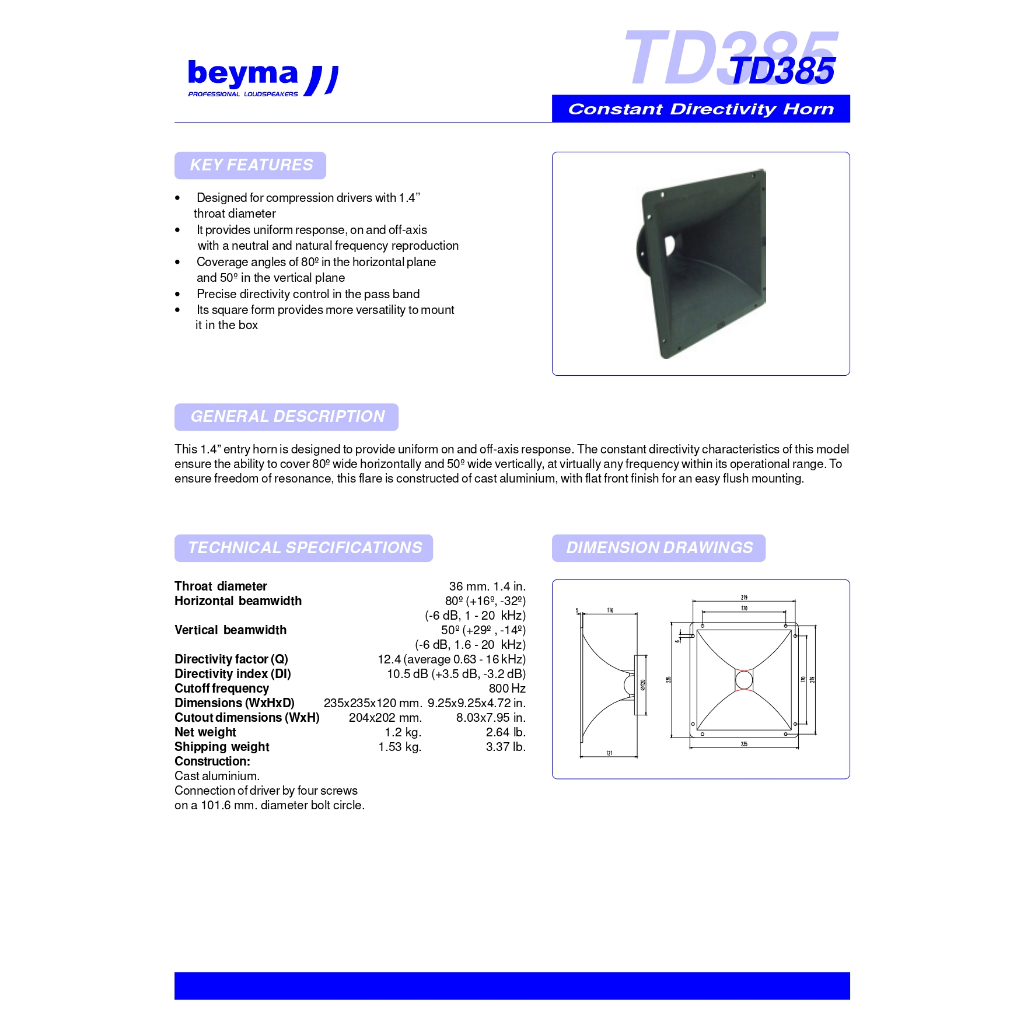

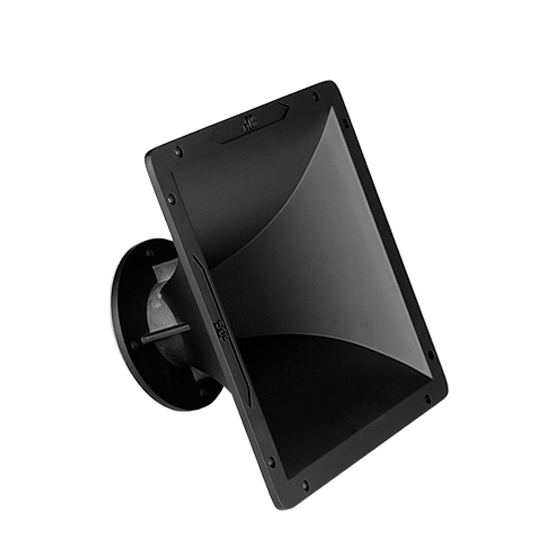

BEYMA TD385 HORNS (P/N: 1TD385)

This 1.4” entry horn is designed to provide uniform on and off-axis response. The constant directivity characteristics of this model ensure the ability to cover 80o wide horizontally and 50o wide vertically, at virtually any frequency within its operational range. To ensure freedom of resonance, this flare is constructed of cast aluminum, with flat front finish for an easy flush mounting.

FEATURES:

• Designed for compression drivers with 1.4’’ throat diameter

• It provides uniform response, on and off-axis with a neutral and natural frequency reproduction

• Coverage angles of 80o in the horizontal plane and 50o in the vertical plane

• Precise directivity control in the pass band

• Its square form provides more versatility to mount it in the box

TECHNICAL SPECS:

Throat diameter: 36mm. 104 in.

Horizontal beamwidth: 80o (+16o, -32o) (-6dB, 1 – 20 kHz)

Vertical beamwidth: 50o (+29o , -14o) (-6 dB, 1.6 – 20 kHz)

Directivity factor (Q): 12.4 (average 0.63 – 16kHz)

Directivity index (DI): 10.5 dB (+3.5dB, -3.2dB)

Cutoff frequency: 800 Hz

Dimensions (WxHxD): 235x235x120 mm. // 9.25×9.25×4.72 in.

Cutout dimensions (WxH): 204×202 mm. // 8.03×7.95 in.

Net weight: 1.2 kg. // 2.64 lb.

Construction:

*Cast aluminium.

*Connection of driver by four screws on a 101.6 mm. diameter bolt circle.
