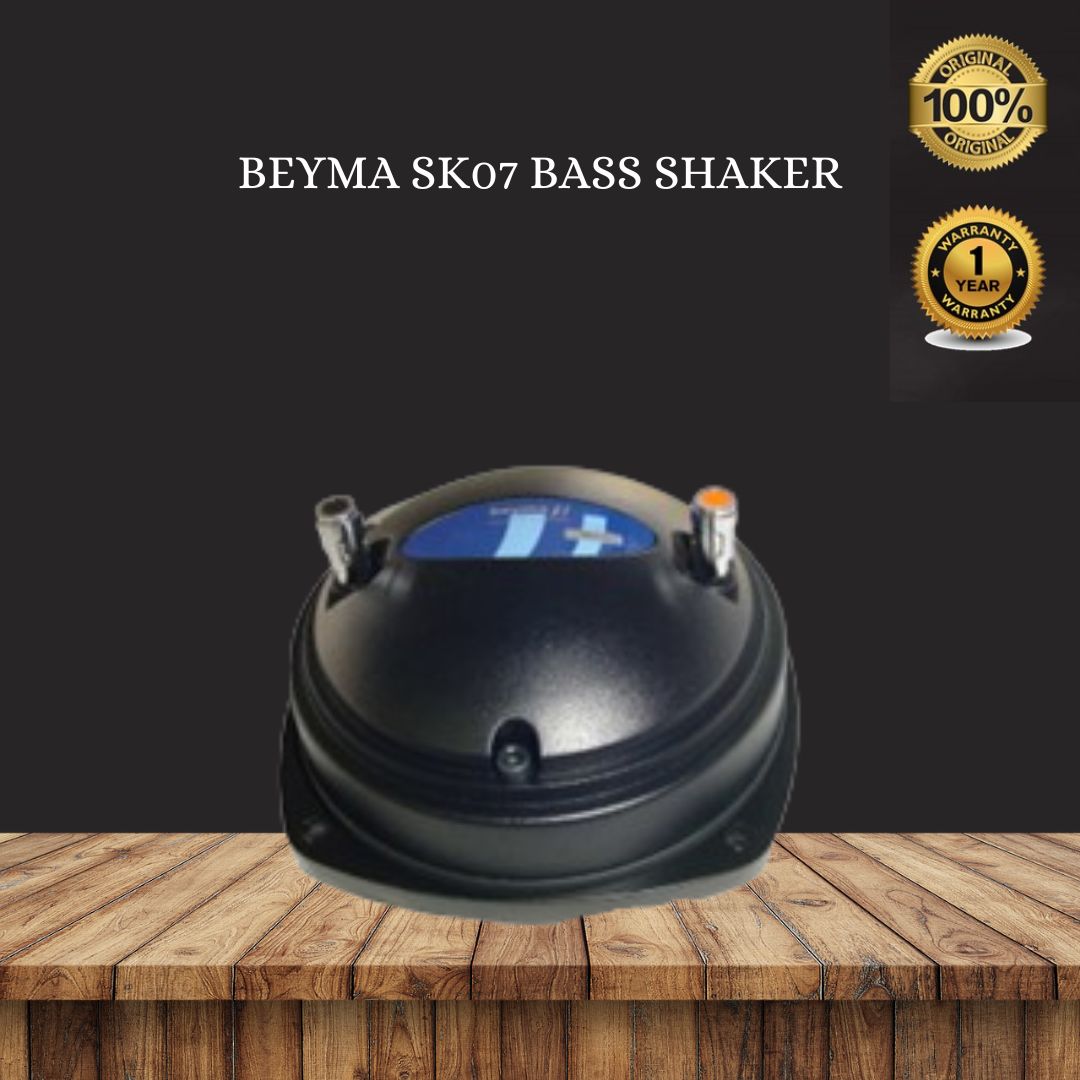

BEYMA SK 07 BASS SHAKER (P/N: 1SK0716)

TECHNICAL SPECS:

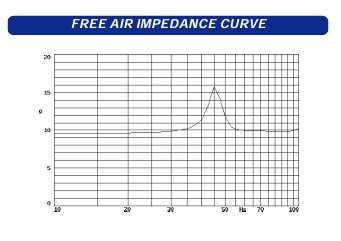

Rated impedance: 16 Ω

Minimum impedance: 9.8 Ω

Force (Peak): 20kgf 196N

Power capacity Continuous: 50W (AES)

Program power Maximum: .100 W

Resonant Frequency, fs: 47Hz

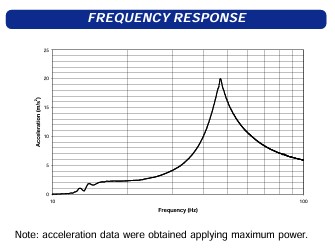

Frequency Range: 20 – 100 Hz

Recommended Low Pass Filter, fc: 120Hz, 18db/oct min.

Voice Coil Diameter: 77mm 3in.
