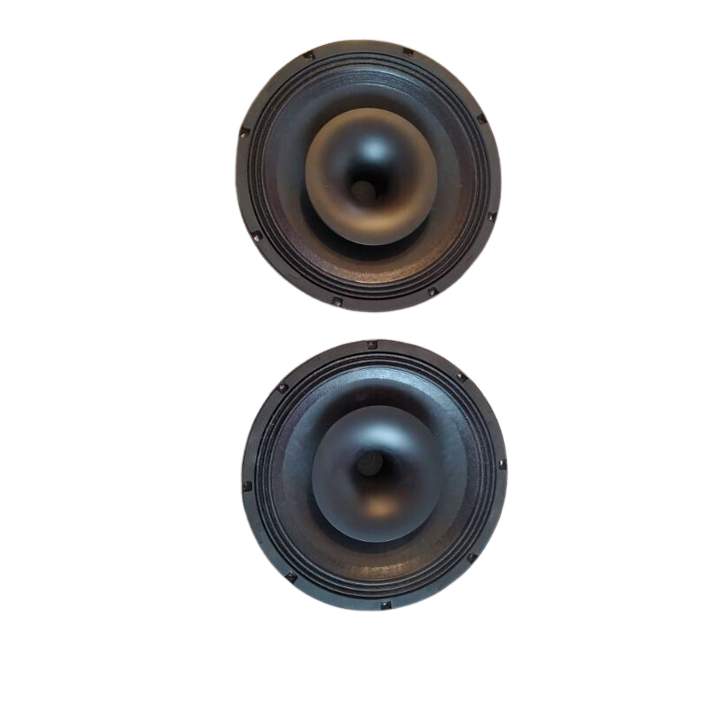

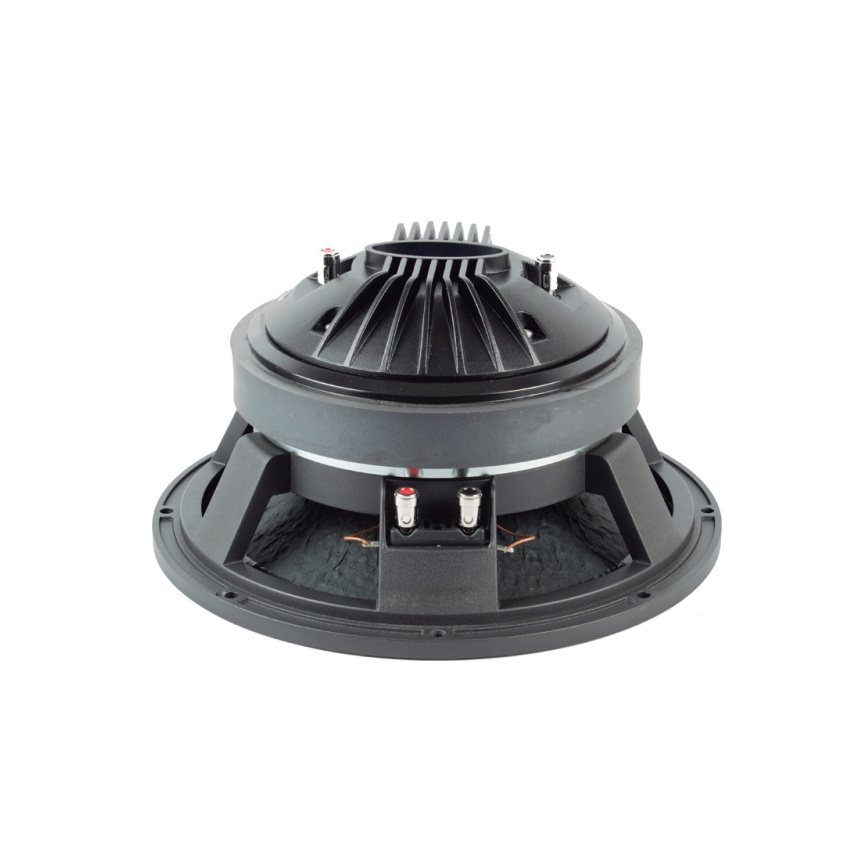

BEYMA 12CXA400FE LOUDSPEAKER 8 OH COAXIALS WOOFER (P/N: 112CXA4FE8)

FEATURES:

● Program power: 800 / 160 WAES (LF / HF)

● Sensitivity: 96 / 105 dB (1W / 1m) (LF / HF)

● 4” voice coil woofer

● 2.85” voice coil compression driver

● Common ferrite magnet system design

● Demodulating rings in both LF and HF units

● Composite Titanium / Polyester HF diaphragm

● Weatherproof LF cone

● 60º coverage horn for HF dispersion control

TECHNICAL SPECS

Nominal diameter: 300mm 12in

Rated impedance (LF/HF): 8 / 16 Ω

Minimum impedance (LF/HF): 6,2 / 12,2 Ω

Power capacity 1 (LF/HF): 400 / 800 W (AES)

Program power 2 (LF/HF): 800 / 160 W

Sensitivity (LF/HF 3): 96 dB 1W / 1m @ Zn 105 dB 1W / 1m @Zn

Frequency range: 40-20.000 Hz

Recom. HF crossover: 1,5kHz or higher (12 dB/oct min slope)

Voice coil diameter (LF/HF): 101,6 mm 4 in 72,2 mm 2,87 in

Bl factor: 19,8 N/A

Moving mass: 0,066kg

Voice coil length: 16 mm

Air gap height: 10 mm

Xdamage (peak to peak): 51 mm
