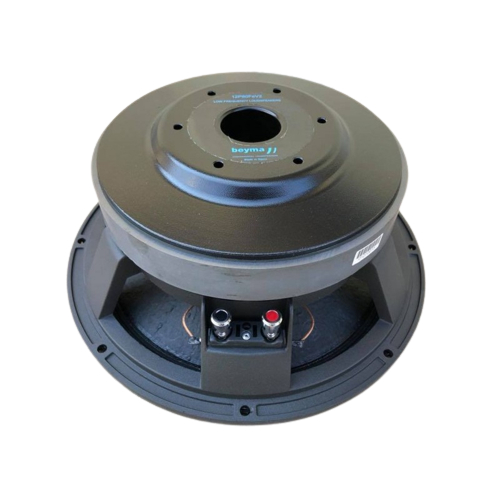

BEYMA 12P80FE LOUDSPEAKER 8 OH LOW AND MID FREQUENCY WOOFER (P/N:112P80FE8)

FEATURES:

● 700 WAES power handling capacity

● High sensitivity: 99 dB (1W / 1m)

● Wide usable frequency range

● Low harmonic distortion

● Low resonant frequency: 48 Hz

● Low power compression losses

● Weatherproof cone with treatment for both sides

● 4” DUO double layer in/out aluminium voice coil

● Conex spider

● Extended controlled displacement: Xmax ± 7,5 mm

● 52 mm peak-to-peak excursion before damage

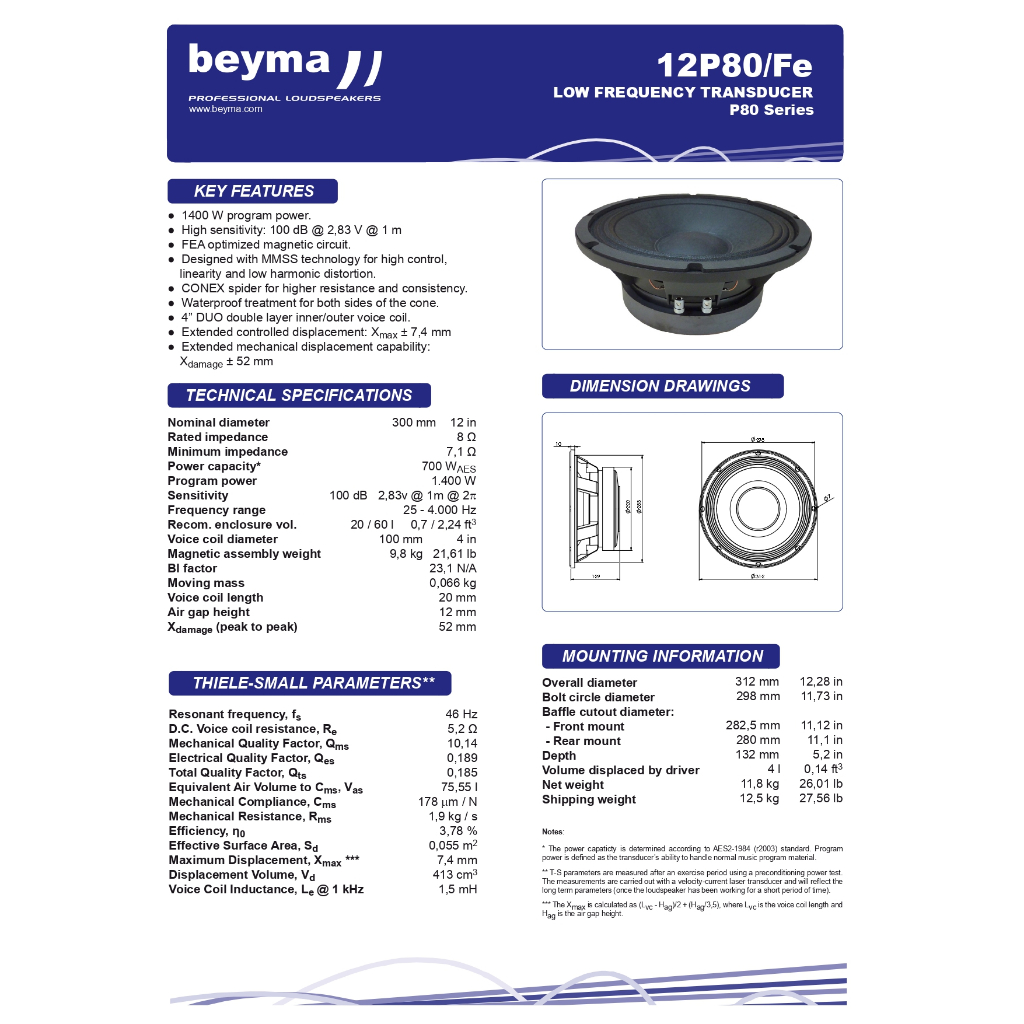

TECHNICAL SPECIFICATIONS

Nominal diameter: 300 mm 12 in

Rated impedance: 8 Ω

Minimum impedance: 7 Ω

Power capacity 1: 700 W (AES)

Program power 2: 1.400 W

Sensitivity: 99 dB 1W / 1m @ ZN

Frequency range: 50 – 4.000 Hz

Recom. enclosure: Vb = 40 l

(Bass-reflex design): Fb = = 75 Hz

Voice coil diameter: 101,6 mm 4 in

Bl factor: 23 N/A

Moving mass: 0,076 kg

Voice coil length: 20 mm

Air gap height]: 12 mm

Xdamage (peak to peak): 52 mm
