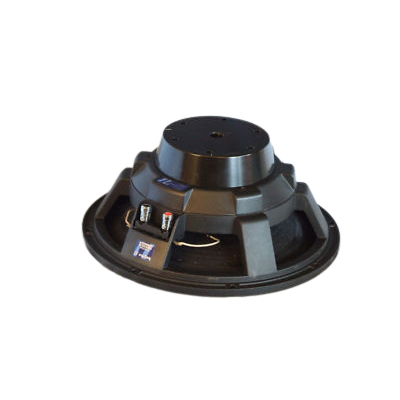

BEYMA 12SW1300ND LOUDSPEAKER 8 OH LOW AND MID FREQUENCY WOOFER (P/N:112SW13ND8)

FEATURES:

• HELICEX® cooling technology

• 1200W AES power handling capacity

• High sensitivity: 96dB @ 2.83v

• Low resonant frequency: 45Hz

• Extended controlled displacement: Xmax ± 10 mm

• Massive mechanical displacement capability: Xpp 60mm

• Designed with MMSS technology

• 4” DUO double inner/outer voice coil winding

• CONEX Spider

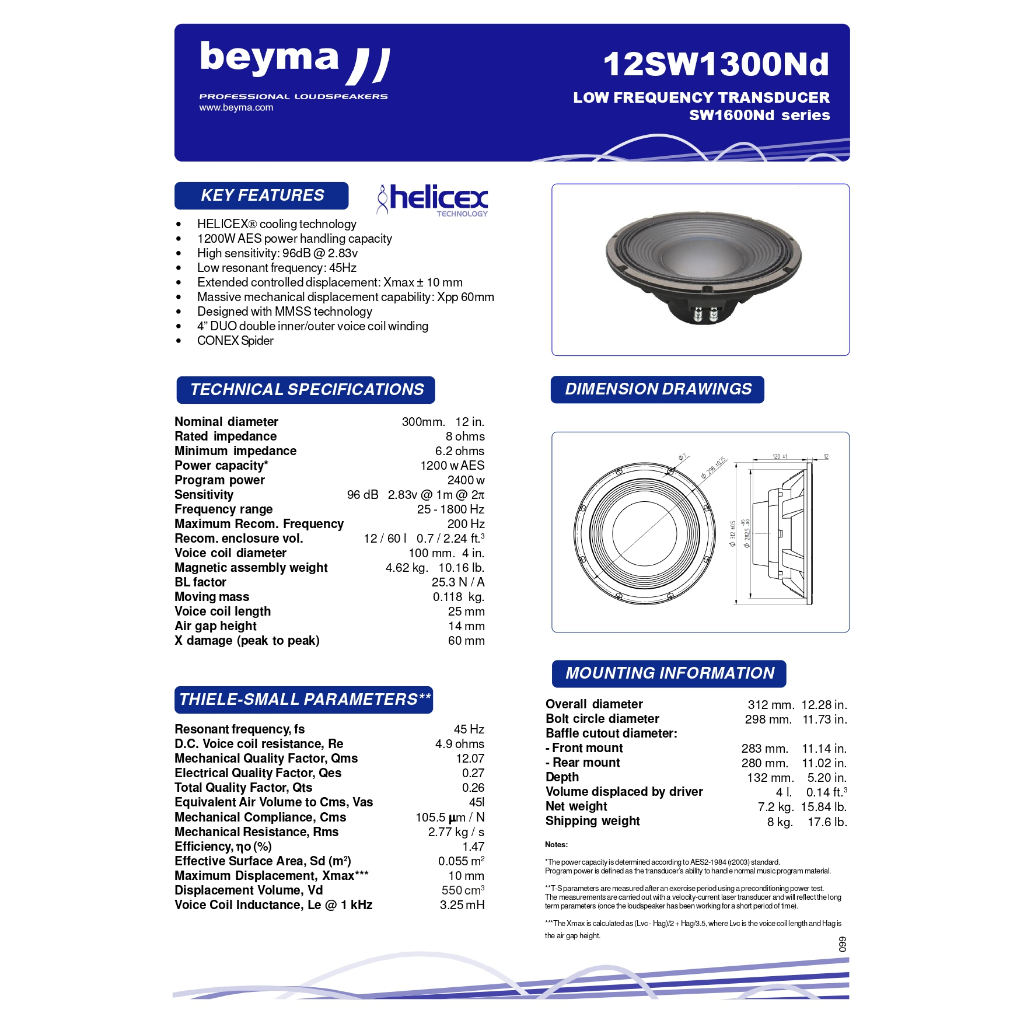

TECHNICAL SPECS:

Nominal diameter: 300mm. 12 in

Rated impedance: 8 ohms

Minimum impedance: 6.2 ohms

Power capacity*: 1200 W (aes)

Program power: 2400 w

Sensitivity: 96 dB 2.83v @ 1m @ 2π

Frequency range: 25 – 1800 Hz

Maximum Recom. Frequency: 200 Hz

Recom. enclosure vol.: 12 / 60 I 0.7 / 2.24 ft.3

Voice coil diameter: 100 mm. 4 in

Magnetic assembly weight: 4.62 kg 10.16 lb

BL factor: 25.3 N/A

Moving mass: 0.118 kg

Voice coil length: 25 mm

Air gap height: 14 mm

X damage (peak to peak): 60mm
