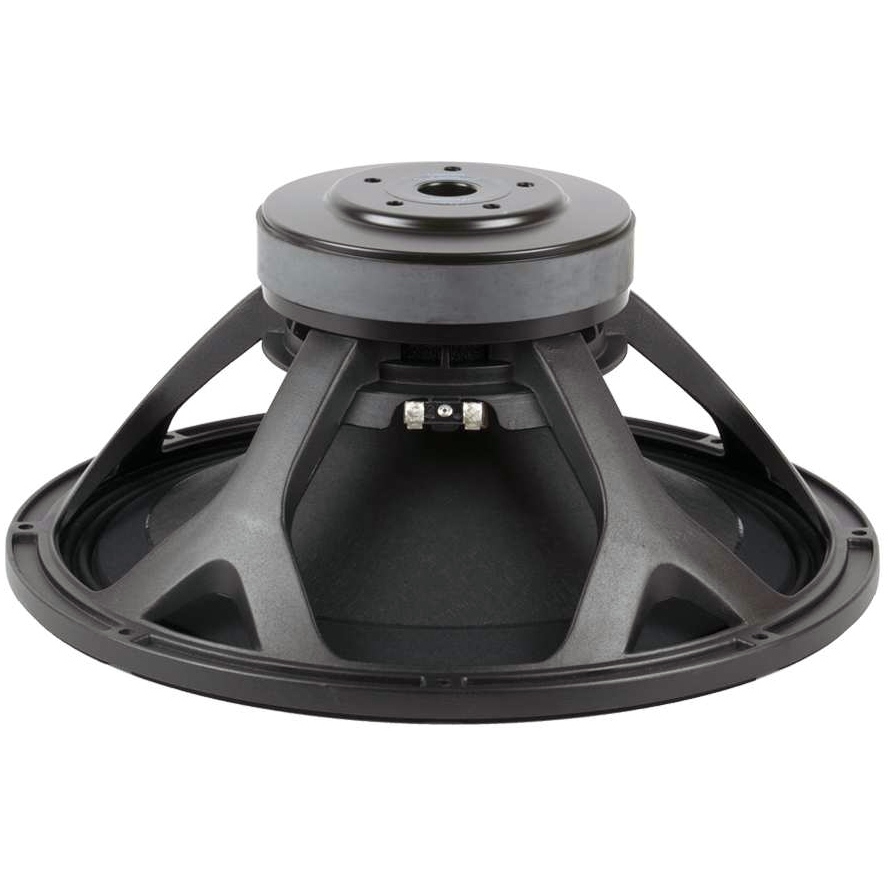

BEYMA 15MCS500 LOUDSPEAKER 8 OHM LOW & MID FREQUENCY WOOFER (P/N:115MC5508)

FEATURES:

● High power handling: 1.000 W program power

● 2,5” copper wire voice coil

● Malt Cross® Cooling System

● Low power compression losses

● High sensitivity: 98 dB (1W / 1m)

● Optimized pressed steel frame

● FEA optimized magnetic circuit

● Weatherproof cone treatment for both sides of the cone

● Optimized for 2 or 3 way PA systems and line array applications

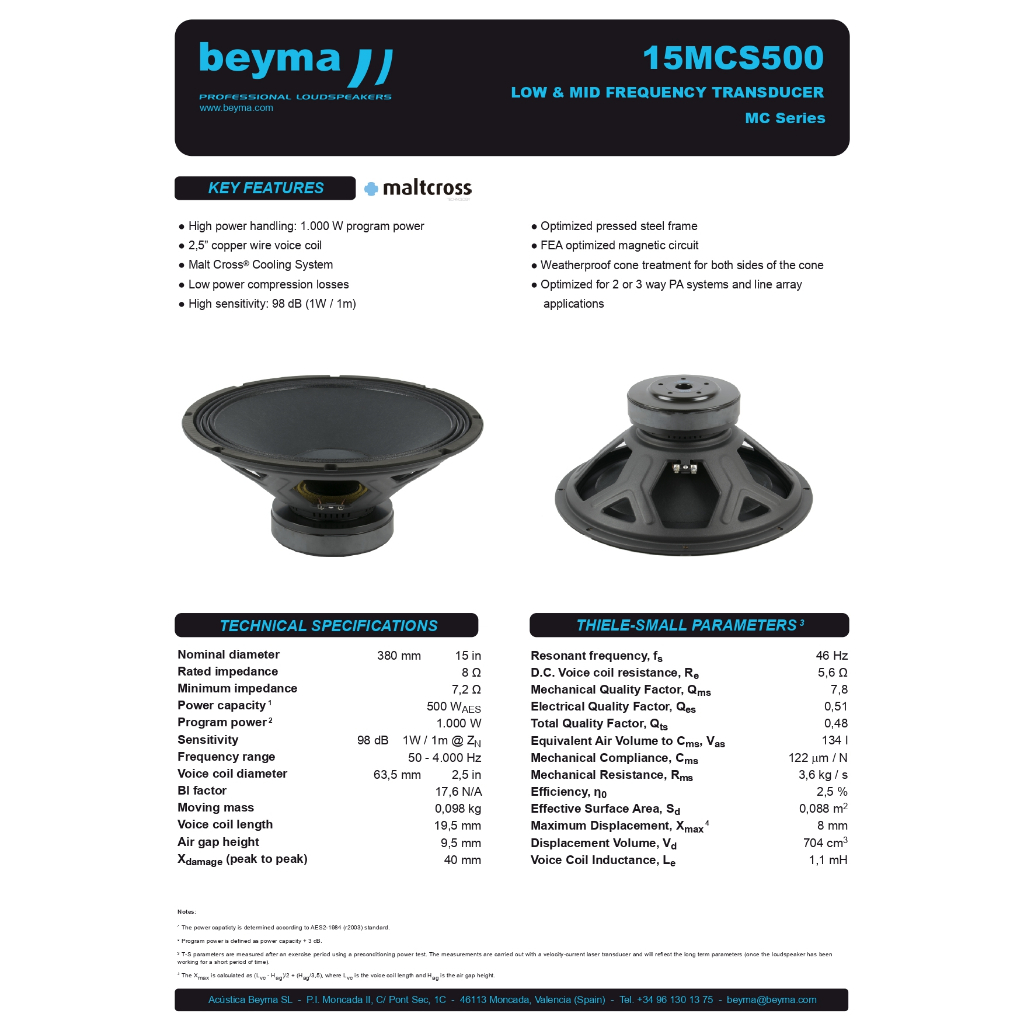

TECHNICAL SPECS:

Nominal diameter: 380 mm 15 in

Rated impedance: 8 Ω

Minimum impedance: 7,2 Ω

Power capacity 1: 500 W (AES)

Program power 2: 1.000 W

Sensitivity: 98 dB 1W / 1m @ Zn

Frequency range: 50 – 4.000 Hz

Voice coil diameter: 63,5 mm 2,5 in

Bl factor: 17,6 N/A

Moving mass: 0,098 kg

Voice coil length: 19,5 mm

Air gap height: 9,5 mm

Xdamage (peak to peak): 40 mm
