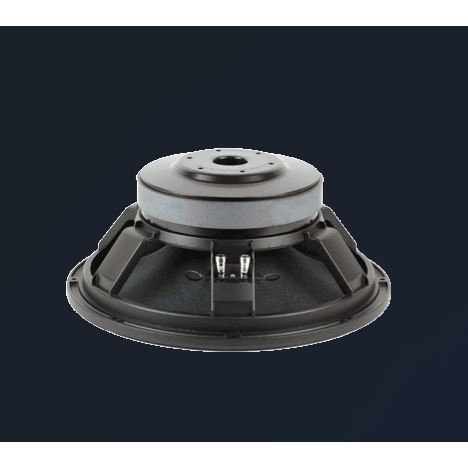

BEYMA 15P80FE LOUDSPEAKER 8 OH LOW AND MID FREQUENCY WOOFER (P/N:115P80FE8)

FEATURES:

● 1.600 W program power

● High sensitivity: 101 dB (1W / 1m)

● FEA optimized magnetic circuit

● Forced air convection circuit for low power compression

● CONEX spider for higher resistance and consistency

● 4” duo technology voice coil

● Weatherproof treatment for both sides of the cone

● Extended controlled displacement: Xmax ± 7,5 mm

● 52 mm peak-to-peak excursion before damage

● Excellent response in high efficiency and horn loading systems

TECHNICAL SPECIFICATIONS:

Nominal diameter: 380mm 15 in

Rated impedance: 8 Ω

Minimum impedance: 6,3 Ω

Power capacity 1: 800 W (AES)

Program power 2: 1.600 W

Sensitivity: 101dB 1W / 1m @ Zn

Frequency range: 30 – 4.000 Hz

Recom. enclosure vol.: 40/ 150 I 1,4 /5,3 ft3

Voice coil diameter: 101,6 mm 4 in

Bl factor: 22, 1 N/A

Moving mass: 0,088 kg

Voice coil length: 20 mm

Air gap height: 12 mm

Xdamage (peak to peak): 52 mm
