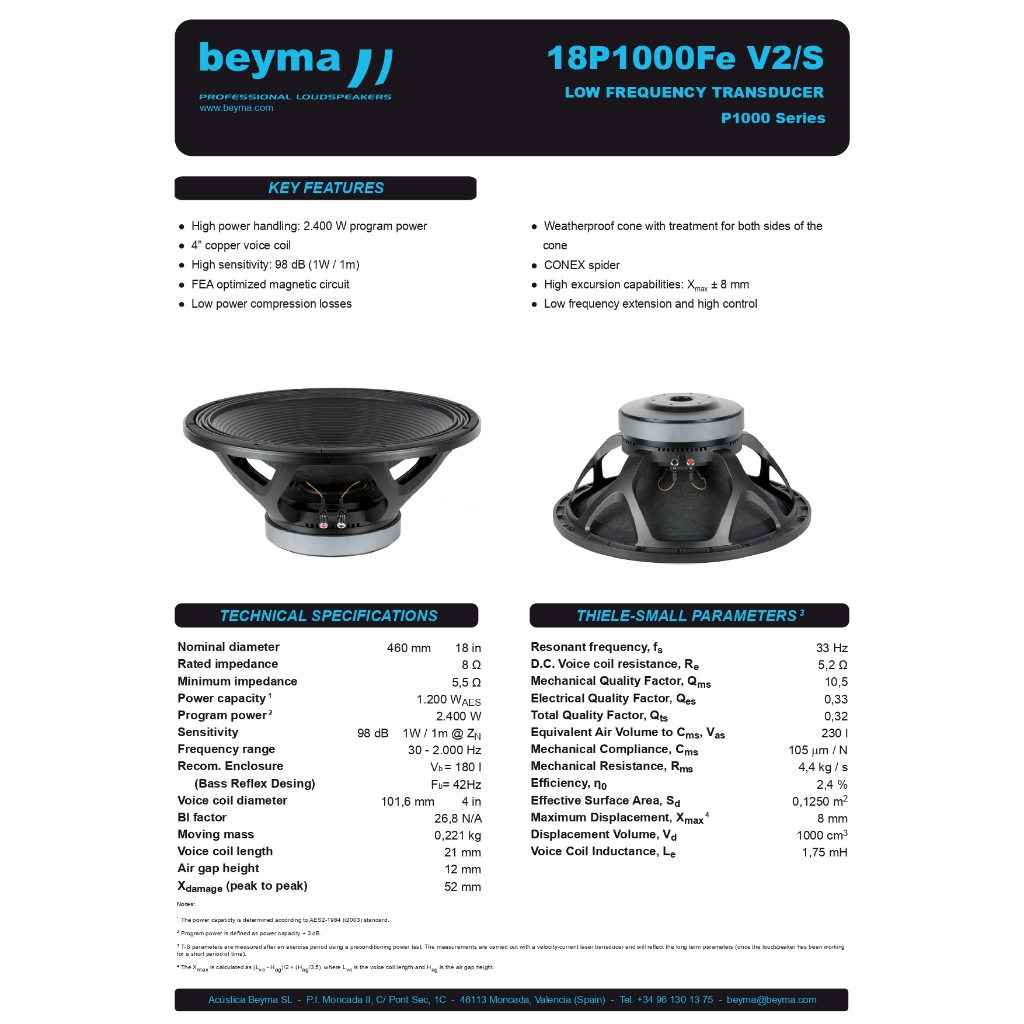

BEYMA 18P1000FE V2 LOUDSPEAKER 8 OH LOW AND MID FREQUENCY WOOFER (P/N: 118P10FE8 V2)

FEATURES:

● High power handling: 2.400 W program power

● 4” copper voice coil

● High sensitivity: 98 dB (1W / 1m)

● FEA optimized magnetic circuit

● Low power compression losses

● Weatherproof cone with treatment for both sides of the cone

● CONEX spider

● High excursion capabilities: Xmax ± 8 mm

● Low frequency extension and high control

TECHNICAL SPECS:

Nominal diameter: 460 mm 18 in

Rated impedance: 8 Ω

Minimum impedance: 5,5 Ω

Power capacity 1: 1.200W (AES)

Program power 2: 2.400 W

Sensitivity: 98 dB 1W / 1m @ Zn

Frequency range: 30 – 2000 Hz

Recom. Enclosure: Vb = 180 I

(Bass Reflex Desing): Fb = 42 Hz

Voice coil diameter: 101,6 mm 4 in

Bl factor: 26,8 N/A

Moving mass: 0,221 kg

Voice coil length: 21mm

Air gap height: 12mm

Xdamage (peak to peak): 52mm
