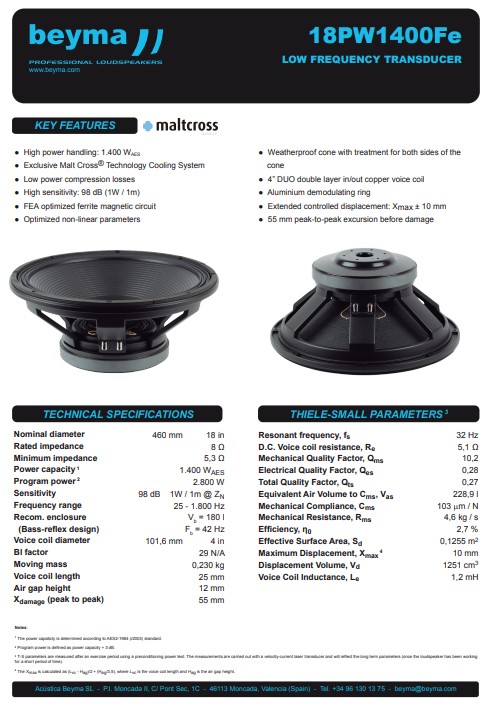

BEYMA 18PW1400FE LOUDSPEAKER 8 OH LOW AND MID FREQUENCY WOOFER (P/N: 118PW14FE8)

FEATURES

● High power handling: 1.400 WAES

● Exclusive Malt Cross® Technology Cooling System

● Low power compression losses

● High sensitivity: 98 dB (1W / 1m)

● FEA optimized ferrite magnetic circuit

● Optimized non-linear parameters

● Weatherproof cone with treatment for both sides of the cone

● 4” DUO double layer in/out copper voice coil

● Aluminium demodulating ring

● Extended controlled displacement: Xmax ± 10 mm

● 55 mm peak-to-peak excursion before damage

TECHNICAL SPECIFICATIONS

Nominal diameter 460 mm 18 in

Rated impedance 8 Ω

Minimum impedance 5,3 Ω

Power capacity 1  1.400 WAES

Program power 2 2.800 W

Sensitivity 98 dB 1W / 1m @ ZN

Frequency range 25 – 1.800 Hz

Recom. enclosure  Vb = 180 l

(Bass-reflex design) Fb = 42 Hz

Voice coil diameter 101,6 mm 4 in

Bl factor 29 N/A

Moving mass  0,230 kg

Voice coil length 25 mm

Air gap height 12 mm

Xdamage (peak to peak) 55 mm
