BEYMA 21PW1400FE LOUDSPEAKER 8 OH LOW AND MID FREQUENCY WOOFER (P/N:121PW14FE8)

FEATURES:

● High power handling: 1400 WAES

● Malt Cross® Cooling System

● Low power compression looses

● High sensitivity: 98,5 dB

● FEA optimized ferrite magnetic circuit

● Designed with MMSS technology for high control, linearity and low harmonic distortion

● Optimized nonlinear parameters

● Waterproof cone with treatment for both sides of the cone

● 4” DUO double layer inner/outer voice coil

● Aluminium demodulating ring

● Extended controlled displacement: Xmax ± 10 mm

● Massive mechanical displacement capability: Xdamage ± 55 mm

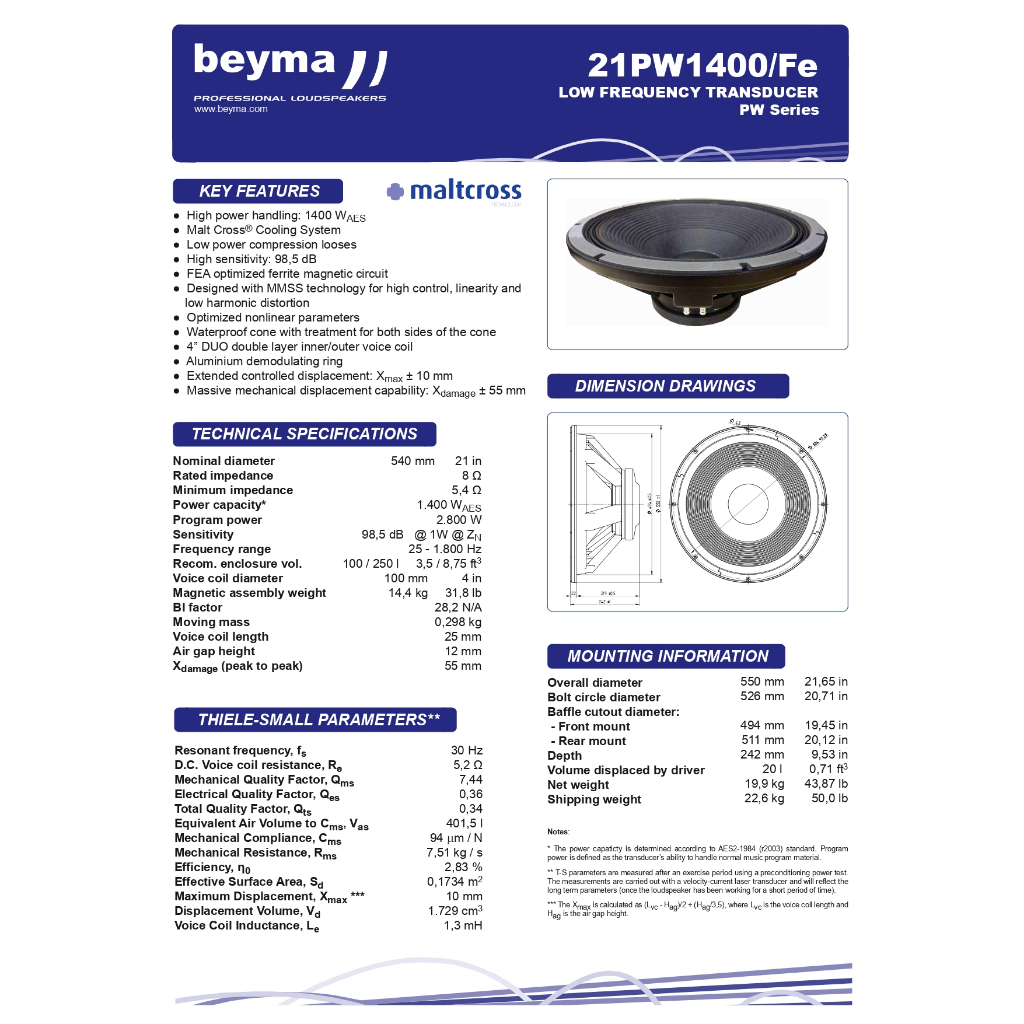

TECHNICAL SPECS:

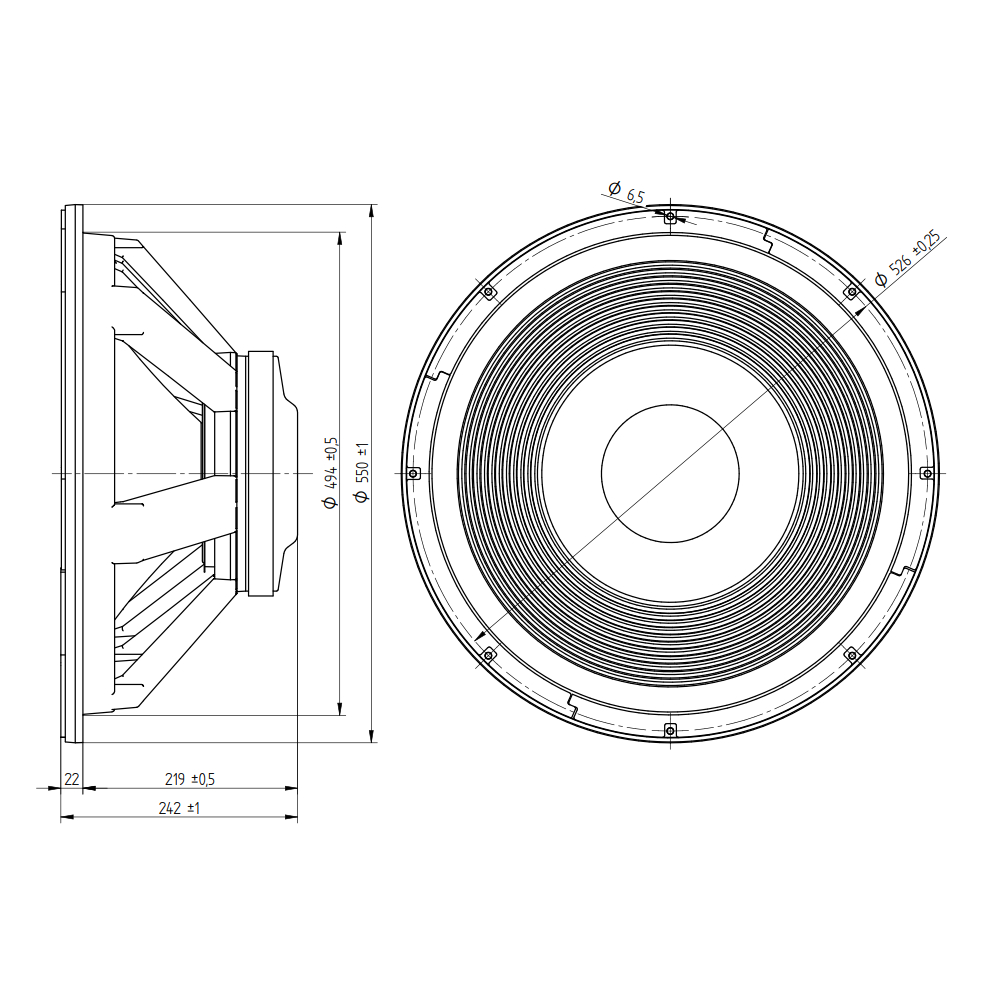

Nominal diameter: 540 mm 21 in

Rated impedance: 8 Ω

Minimum impedance: 5,4 Ω

Power capacity*: 1.400 W(AES)

Program power: 2.800 W

Sensitivity: 98,5 dB @ 1W @ Zn

Frequency range: 25 – 1.800 Hz

Recom. enclosure vol.: 100/250 I 3,5/8,75 ft3

Voice coil diameter: 100 mm 4 in

Magnetic assembly weight: 14,4 kg 31,8 lb B

l factor: 28,2 N/A

Moving mass: 0,298 kg

Voice coil length: 25mm

Air gap height: 12mm

Xdamage (peak to peak): 55mm
