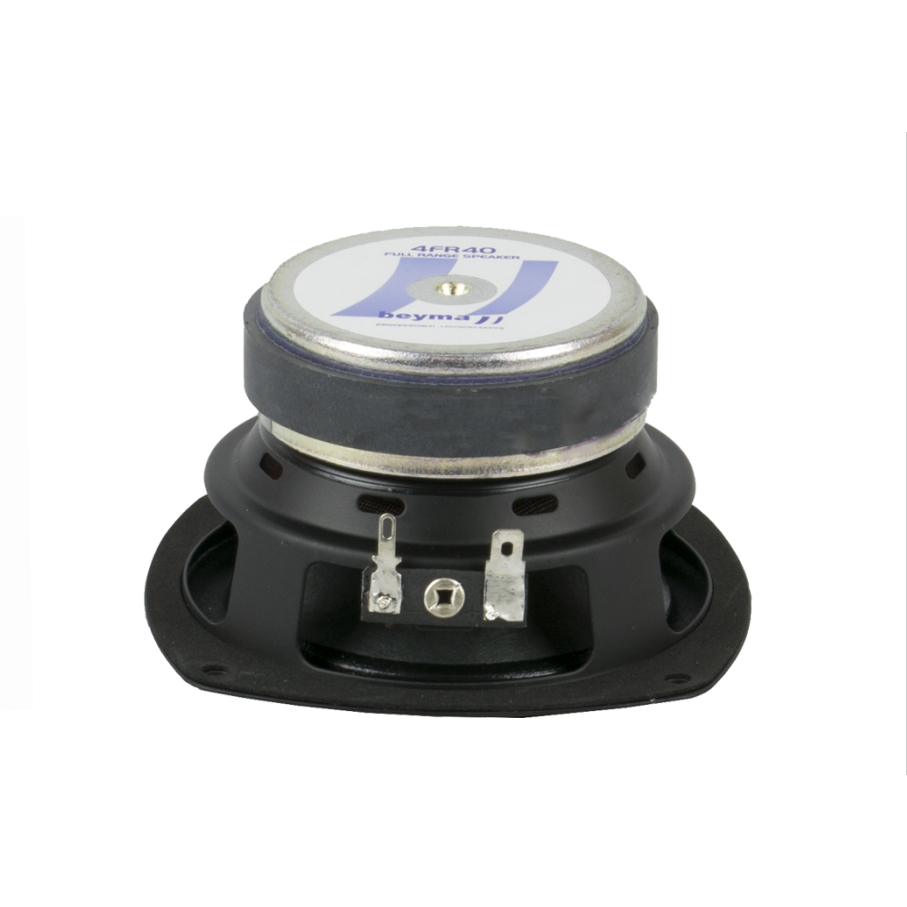

BEYMA 4FR40 FULL RANGE SPEAKER 8 OHMS WOOFER (P/N:104FR408)

FEATURES:

● 4” full-range compact ferrite loudspeaker

● 80 W program power

● Extended response and low distortion

● Paper cone and SantopreneTM surround

● Pressed steel basket

● Ceramic magnet

● Ideal form beam-steering application (columns), portable array and compact applications

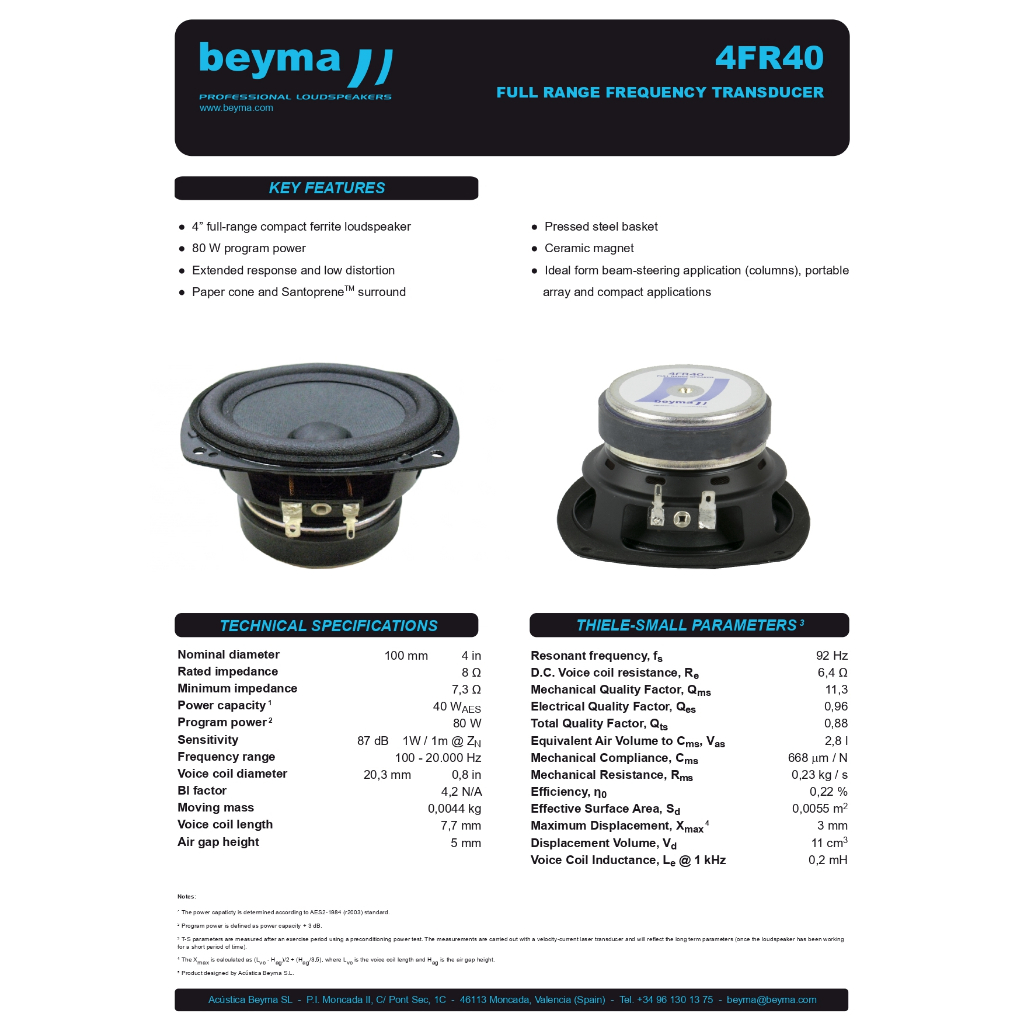

TECHNICAL SPECS:

Nominal diameter: 100 mm 4 in

Rated impedance: 8 Ω

Minimum impedance: 7,3 Ω

Power capacity 1: 40 W (AES)

Program power 2: 80 W

Sensitivity: 87 dB 1W / 1m @ Zn

Frequency range: 100 – 20.000 Hz

Voice coil diameter: 20,3 mm 0,8 in

Bl factor: 4,21 N/A

Moving mass: 0,0044 kg

Voice coil length: 7,7mm

Air gap height: 5mm

Notes:

1 The power capacity is determined according to AES2-1984 (r2003) standard.

2 Program power is defined as power capacity + 3 dB.

3 T-S parameters are measured after an exercise period using a preconditioning power test. The measurements are carried out with a velocity-current laser transducer and will reflect the long term parameters (once the loudspeaker has been working for a short period of time).

4 The Xmax is calculated as (Lvc – Hag)/2 + (Hag/3,5), where Lvc is the voice coil length and Hag is the air gap height.

5 Product designed by Acústica Beyma S.L.
