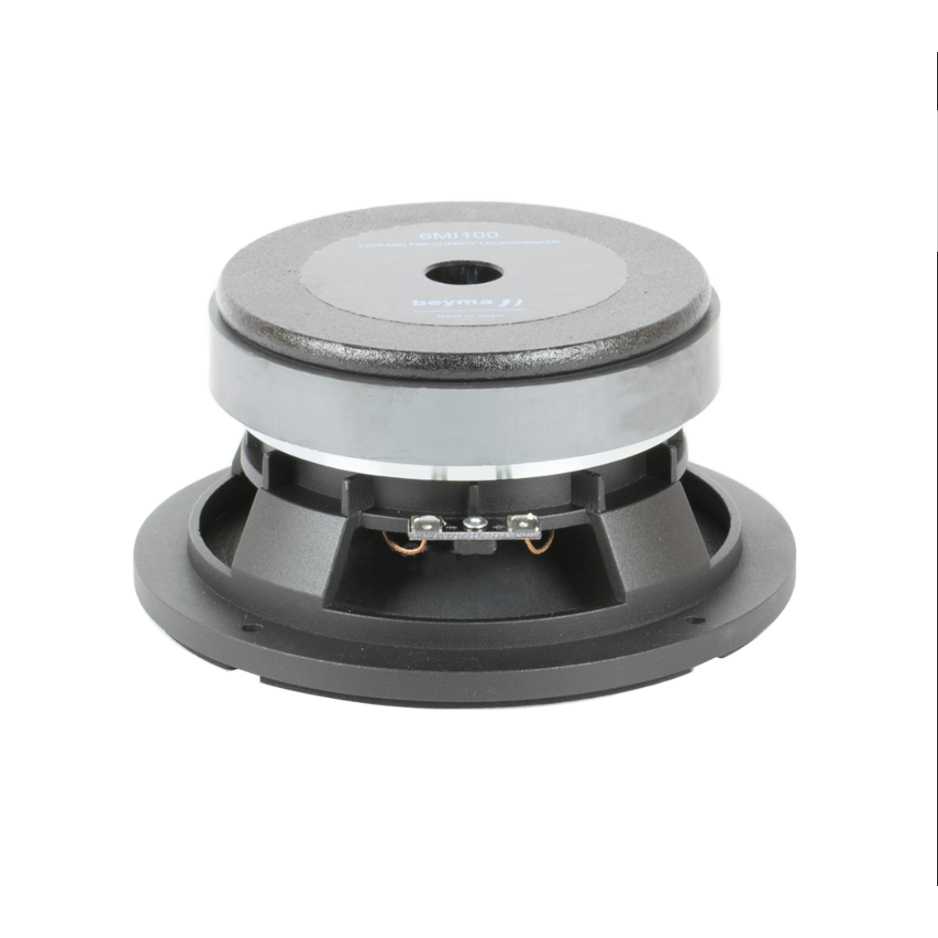

BEYMA 6MI100 LOUDSPEAKER 8 OH LOW AND MID FREQUENCY WOOFER (P/N:106MI108)

FEATURES:

● Program power: 500 W

● Sensitivity: 94 dB (1W / 1m)

● 2” aluminum voice coil

● Die cast aluminum basket

● Shorting cap for extended response and low harmonic distortion

● Designed for high quality mid-frequency reproduction

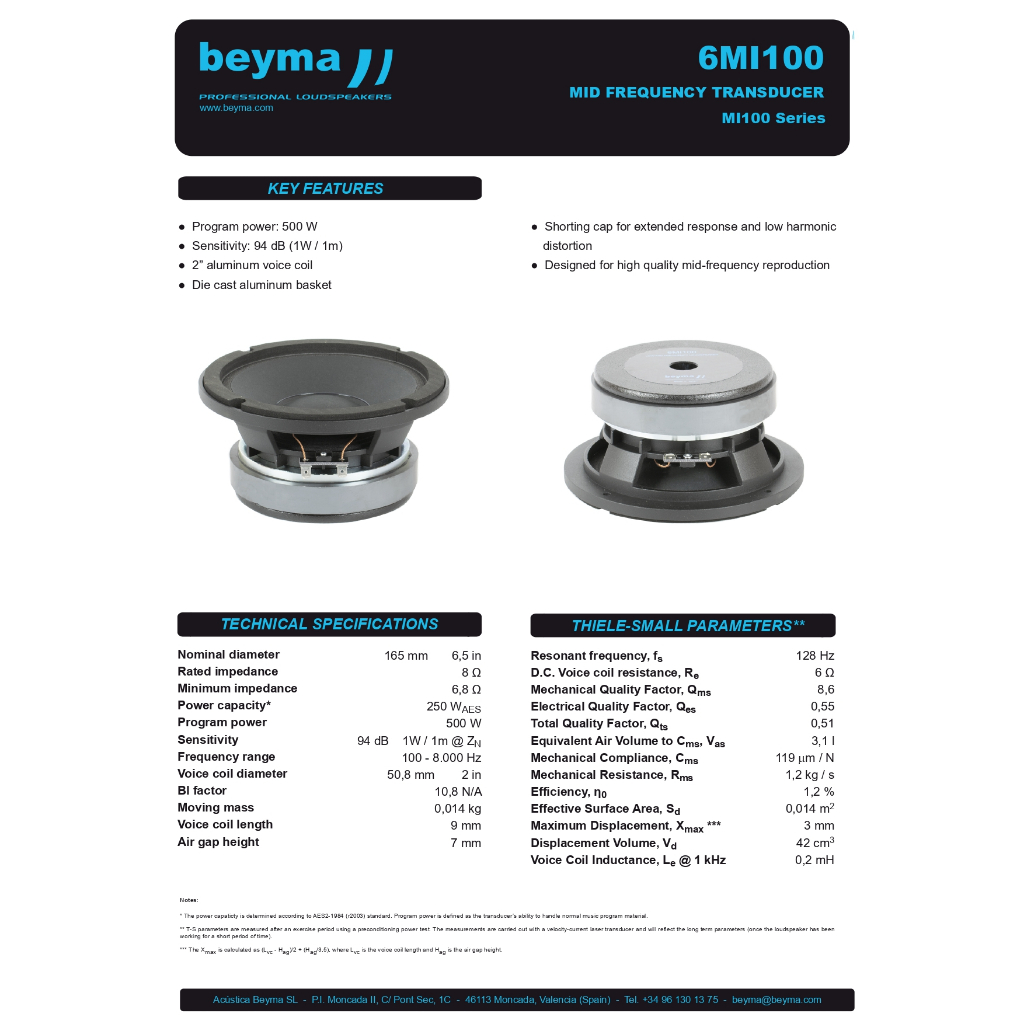

TECHNICAL SPECS:

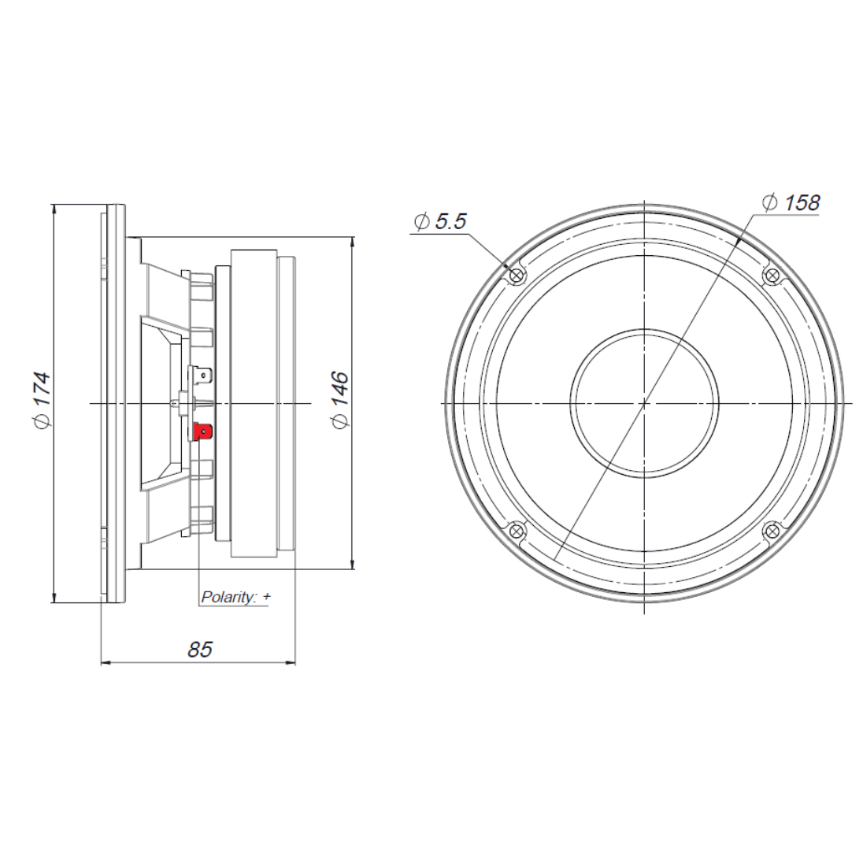

Nominal Diameter: 165 mm 6.5 in

Rated Impedance: 8 Ω

Minimum: Impedance: 6,8 Ω

Power Capacity: 250 W (AES)

Program power: 500W

Sensitivity: 94 dB 1W / 1m @ Zn

Frequency range: 100 – 8.000 Hz

Voice coil diameter: 50,8 mm 2 in

BI Factor: 10,8 N/A

Moving mass: 0,014 kg

Voice coil length: 9 mm

Air gap height: 7 mm

Notes:

* The power capacity is determined according to AES2-1984 (r2003) standard. Program power is defined as the transducer’s ability to handle normal music program material.

** T-S parameters are measured after an exercise period using a preconditioning power test. The measurements are carried out with a velocity-current laser transducer and will reflect the long term parameters (once the loudspeaker has been working for a short period of time).

*** The Xmax is calculated as (Lvc – Hag)/2 + (Hag/3,5), where Lvc is the voice coil length and Hag is the air gap height.
