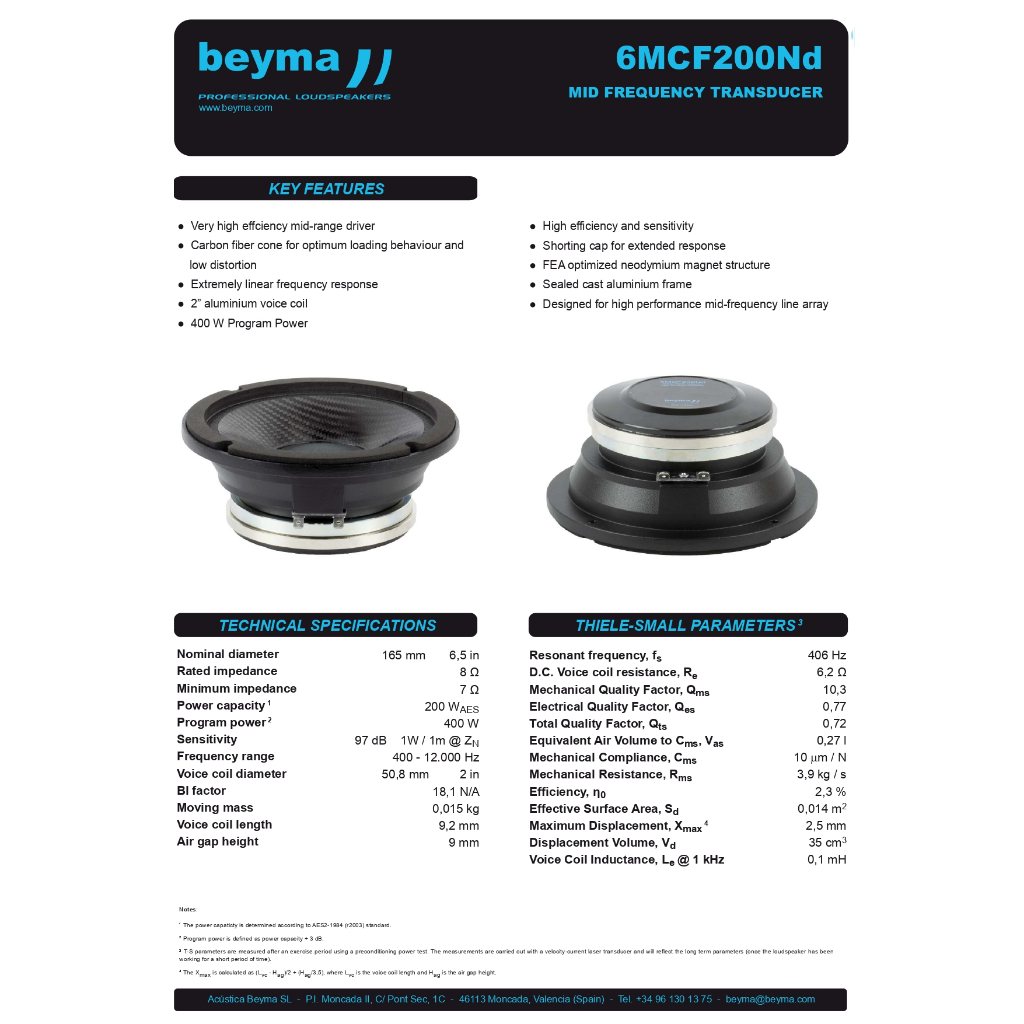

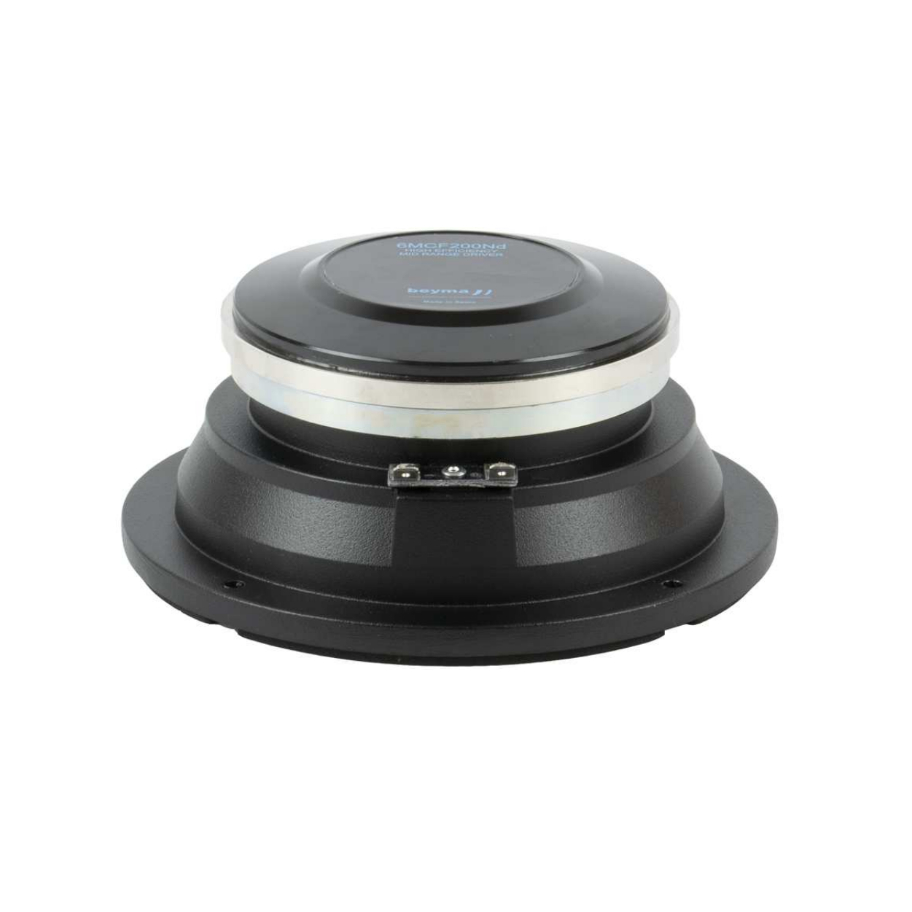

BEYMA 6MCF200ND LOUDSPEAKER 8 OH LOW AND MID FREQUENCY WOOFER (P/N:106MCF20ND8)

FEATURES:

● Very high effciency mid-range driver

● Carbon fiber cone for optimum loading behaviour and low distortion

● Extremely linear frequency response

● 2” aluminium voice coil

● 400 W Program Power

● High efficiency and sensitivity

● Shorting cap for extended response

● FEA optimized neodymium magnet structure

● Sealed cast aluminium frame

● Designed for high performance mid-frequency line array

TECHNICAL SPECS:

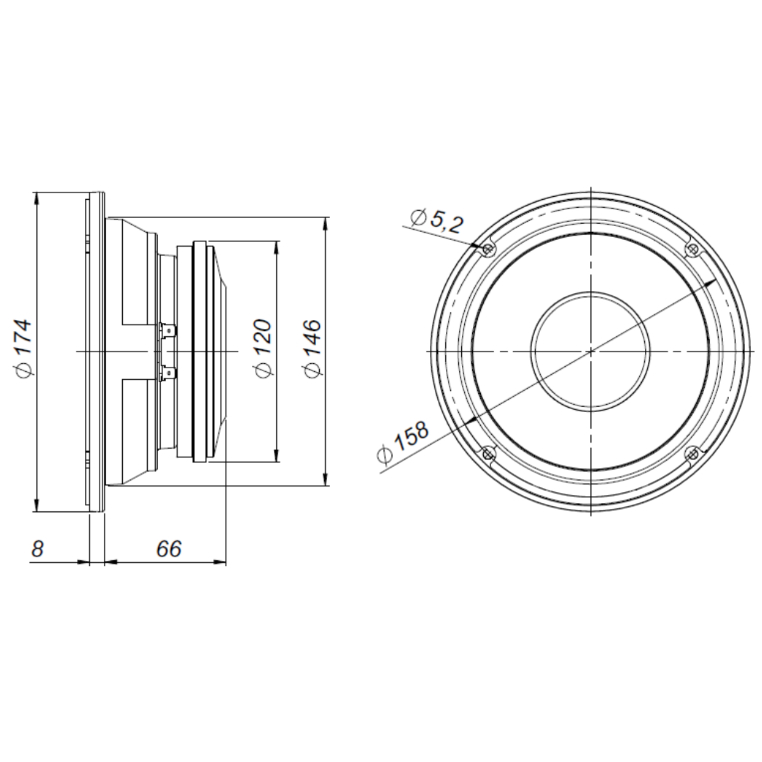

Nominal diameter: 165 mm 6,5 in

Rated impedance: 8 Ω Minimum impedance: 7 Ω

Power capacity 1: 200 W (AES)

Program power 2: 400 W

Sensitivity: 97dB 1W / 1m @ Zn

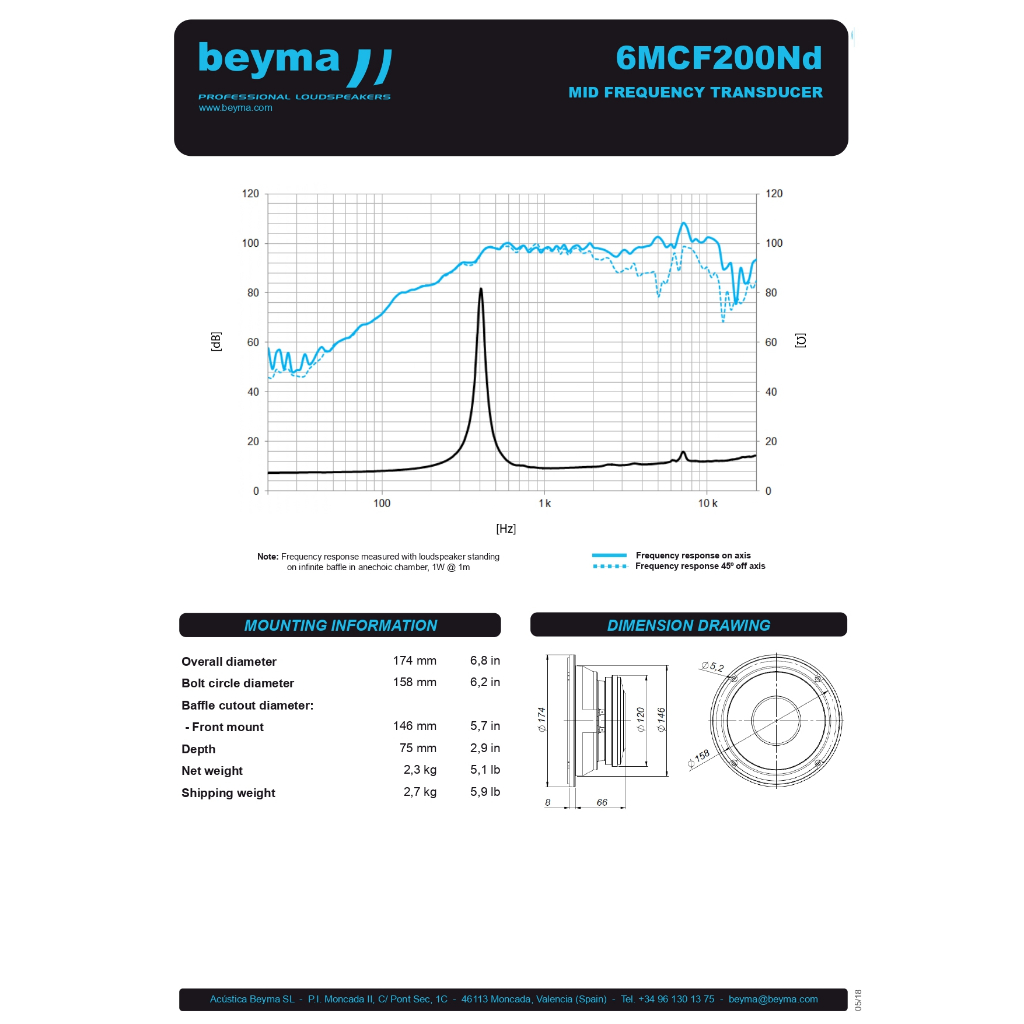

Frequency range: 400 – 12.000 Hz

Voice coil diameter: 50,8 mm 2 in

Bi factor: 18,1 N/A

Moving mass: 0,015 kg

Voice coil length: 9,2 mm

Air gab height: 9 mm

Notes:

1 The power capacity is determined according to AES2-1984 (r2003) standard.

2 Program power is defined as power capacity + 3 dB.

3 T-S parameters are measured after an exercise period using a preconditioning power test. The measurements are carried out with a velocity-current laser transducer and will reflect the long term parameters (once the loudspeaker has been working for a short period of time).

4 The Xmax is calculated as (Lvc – Hag)/2 + (Hag/3,5), where Lvc is the voice coil length and Hag is the air gap height.
