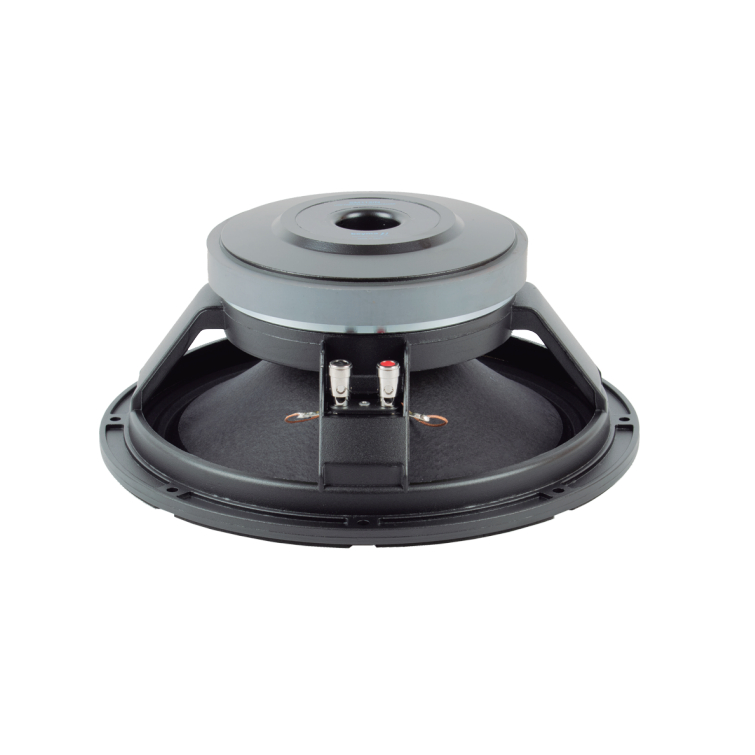

BEYMA SM112/N 12″ LOUDSPEAKER 8 OHMS LOW AND MID FREQUENCY WOOFER (P/N: 112SMN8)

FEATURES:

● High power handling 400 WAES

● High sensitivity: 97 dB (1W / 1m)

● 3” copper voice coil

● Extended controlled displacement: Xmax ± 7,25 mm

● 30 mm peak-to-peak excursion before damage

● Designed for high power woofer applications

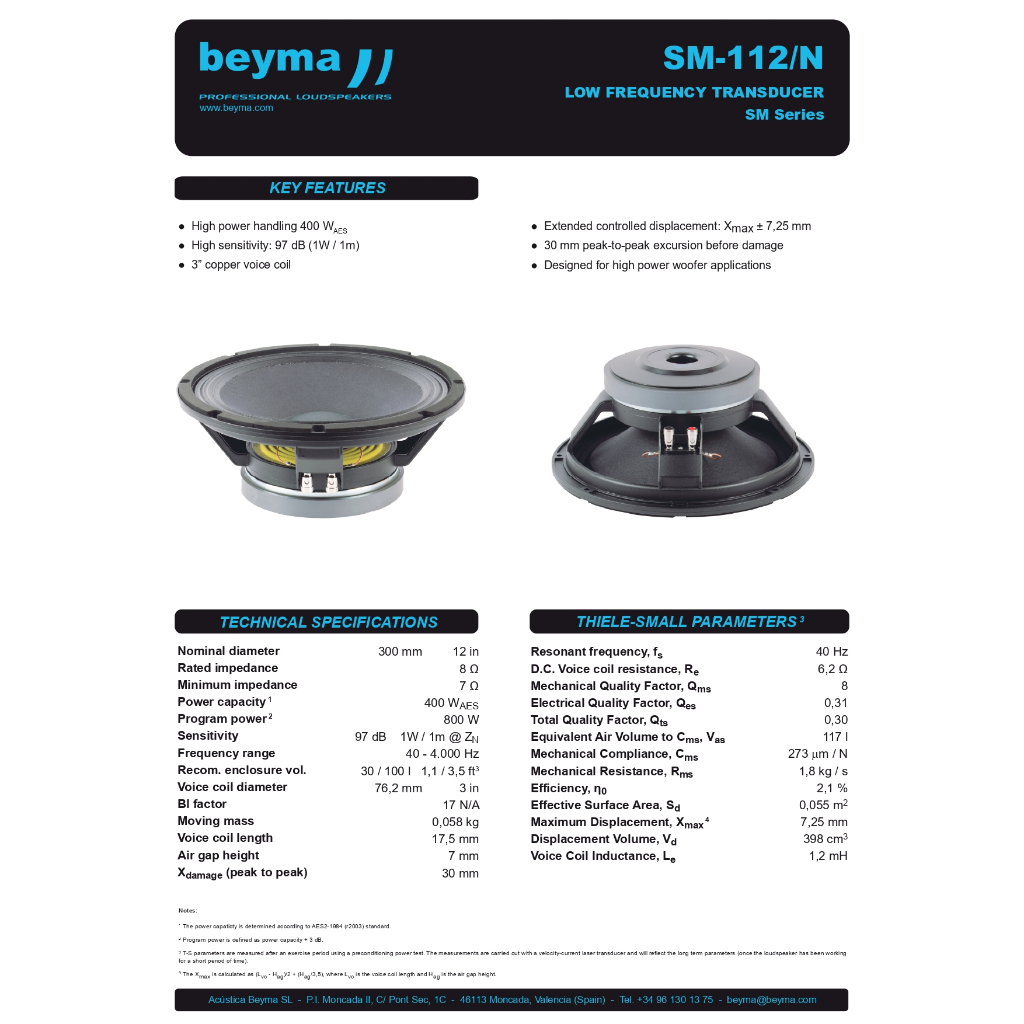

TECHNICAL SPECS:

Nominal diameter: 300 mm 12 in

Rated impedance: 8 Ω

Minimum impedance: 7 Ω

Power capacity 1: 400 W (AES)

Program power 2: 800 W

Sensitivity: 97 dB 1W / 1m @ Zn

Frequency range: 40 – 4.000 Hz

Recom. enclosure vol. 30/ 100 I 1,1 / 3,5 ft3

Voice coil diameter: 76,2 mm 3 in

BI factor: 17 N/A

Moving mass: 0,058 kg

Voice coil length: 17,5 mm

Air gap height: 7 mm

Xdamage (peak to peak): 30 mm

Notes:

1 The power capacity is determined according to AES2-1984 (r2003) standard.

2 Program power is defined as power capacity + 3 dB.

3 T-S parameters are measured after an exercise period using a preconditioning power test. The measurements are carried out with a velocity-current laser transducer and will reflect the long term parameters (once the loudspeaker has been working for a short period of time).

4 The Xmax is calculated as (Lvc – Hag)/2 + (Hag/3,5), where Lvc is the voice coil length and Hag is the air gap height
